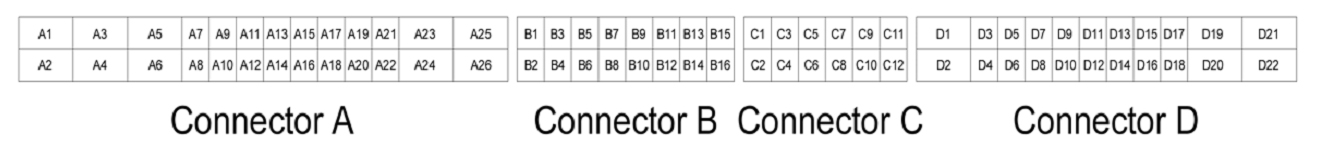

| A1 | Injector 1 |
| A2 | Injector 4 |
| A3 | Injector 2 |
| A4 | Injector 5 |
| A5 | Injector 3 |
| A6 | Injector 6 |
| A7 | Main Relay |
| A8 | FLR2 (Fuel Pump Relay 2) |
| A9 | IACV (Idle Air Control Valve) |
| A10 | HTCNTF (Front O2 Sensor Ground) |
| A11 | ES (EGR Control Solenoid Valve) (-) |
| A12 | HTCNTR (Rear O2 Sensor Ground) |
| A13 | WARN (Check Engine Light) |
| A14 | BPS (Chamber Volume Control Sol) |
| A15 | ACC (A/C Clutch Relay) |
| A18 | FANCNTR (Fan Control) |
| A20 | PGS (Purge Cut-off Solenoid Valve) |
| A21 | IG NO.1 (Ignition Coil No. 1) |
| A22 | IG NO.2 (Ignition Coil No. 2) |
| A23 | PG1 (Power Ground) |
| A24 | PG2 (Power Ground) |
| A25 | IGP1 (Power Source) |
| A26 | LG1 (Sensor Ground) |
| ----- | ----- |
| B2 | LG2 (Chassis Ground) |
| B3 | IG NO.6 (Ignition Coil No. 6) |
| B4 | IG NO.5 (Ignition Coil No. 5) |
| B6 | IG NO.4 (Ignition Coil No. 4) |
| B7 | NT SW(M/T) NP SW(A/T) |
| B8 | IG NO.3 (Ignition Coil No. 3) |
| B9 | CYL 2P |
| B10 | CYL 2M |
| B11 | CYL 1P |
| B12 | CYL 1M |
| B13 | CRNK 2P |
| B14 | CRNK 2M |
| B15 | CRNK 1P |
| B16 | CRNK 2M |
| ----- | ----- |
| C1 | IGP2 (Power Source) |
| C2 | VSS (Vehicle Speed Sensor) |
| C3 | ACS (A/C Control Unit) |
| C4 | NEP (Tachometer) |
| C5 | PDSW (A/C Pressure Switch Signal) |
| C6 | Traction Control |
| C7 | MTCLS (M/T Clutch Switch) |
| C8 | Traction Control |
| C9 | SCS (Service Check Connector) |
| C10 | Traction Control |
| C11 | STS (Starter Switch Signal) |
| C12 | Traction Control |
| ----- | ----- |
| D1 | Voltage Back Up |
| D2 | VTEC Pressure |
| D3 | Knock Rear |
| D4 | Knock Front |
| D5 | Baro |
| D6 | VFP On |
| D8 | Timing Adjust |
| D9 | Alternator FR Signal |
| D10 | VTEC pressure input |
| D11 | Throttle Position Sensor |
| D12 | EGRL (EGR Lift Sensor) |
| D13 | Engine Coolant Sensor |
| D14 | Primary 02 Sensor |
| D15 | Inlet Air Temp Sensor |
| D16 | Secondary 02 Sensor |
| D17 | Map Sensor |
| D18 | Sensor 5v |
| D19 | Sensor 5v |
| D20 | Sensor 5v |
| D21 | Sensor Ground |
| D22 | Sensor Ground |
| ----- | ----- |
| F2 | Front VTEC Pressure Switch |
| F4 | Rear VTEC Pressure Switch |
| F5 | Front VTEC Solenoid Valve |
| F6 | TH ACP |
| F7 | Rear VTEC Solenoid Valve |
