DYNO VIDEO
YouTube - ‪Turbo RSX‬‏
2002 TURBO RSX-S 27psi 660whp 440tq Race Gas
TUNE WAS DONE ON MUSTANG DYNO, I WAS ON MY 18 X 9 RIMS WITH 275/40/18 TIRES AND BIG BRAKE KIT THE EXTRA ROTATIONAL WEIGHT SURE DIDNT HELP MY DYNO NUMBERS BUT I WILL TAKE TRACTION OVER POWER ANY DAY

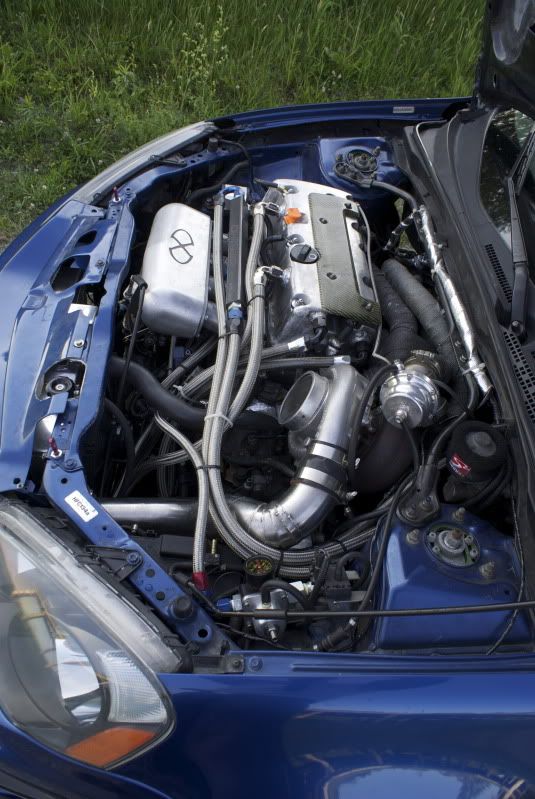

Motor k20a2
KPRO
HONDATA 4BAR Map Sensor
Turbo GT4094R 1.06AR BALL BARRING
Full Race Twin Scroll T4 Manifold
2 Tial 44mm Waste Gates
TIAL 50MM BOV

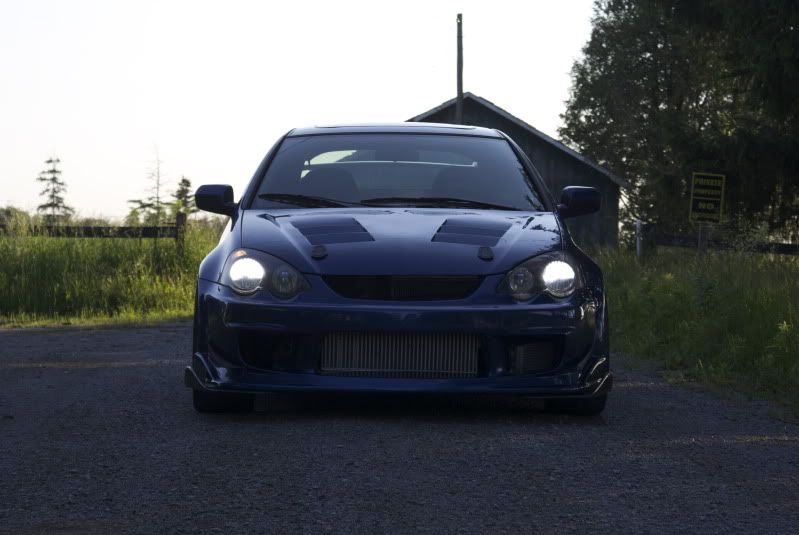

1300Hp Custom Vertical Flow Intercooler
Custom 3 Inch Intercooler Piping
Full Race 3 Inch Down Pipe
Custom 3 Inch Exhaust Exits on the side
Xcessive K-PRO Intake Manifold
90mm Throttle Body
Fluidyne Heavy Duty Oil Cooler
IPS KT1 Turbo Cams
Eibach EVS with Ti Retainers
Benson Sleevs Machined by Laskey Racing
CP Pistons
Pauter Rods
Fast Turbo Fuel System 044 Bosh External Fueal Pump
1600cc Precision Injectors
Golden Eagle Fuel Rail
Weldon Fuel Pressure Regulator
Spoon Carbon Fiber Spark Plug Cover
JDM type R Engine Cover
Avid Racing Motor Mounts
T1 Race Development Breather Box
Koyo Racing Radiator with High Flow 13" Spal Fan 18 amp motor
Suspension
Tein Flex Coilovers
Authentic Mugen Front and Rear Strut Bars
Progress Rear Sway Bar Adjustable
Progress Front Sway Bar 27mm
Beaks Tie Bar
Transmission
PAR Honda K-Series 1st~4th dog engagement gearset
Ratios i chose for turbo drag applications - 2.83, 1.92, 1.31, 1.05 i will be using stock 5th
Straight cut 4.27 ratio final drive
Tilton Twin Disc Cerametallic Clutch
Tilton Release Bearing Kit: Cerametallic Clutch
Quife LSD
Wheels for the street
18 x 9 Valks SF Challenge Bronze
Street Tires
275/40/18 Front Azenis 615
255/45/18 Rear Azenis 615
Drag Wheels
15 x 9 Exospeed
Slicks
26 x 10 M/H
Brakes
KVR Phantom Big Brake Kit

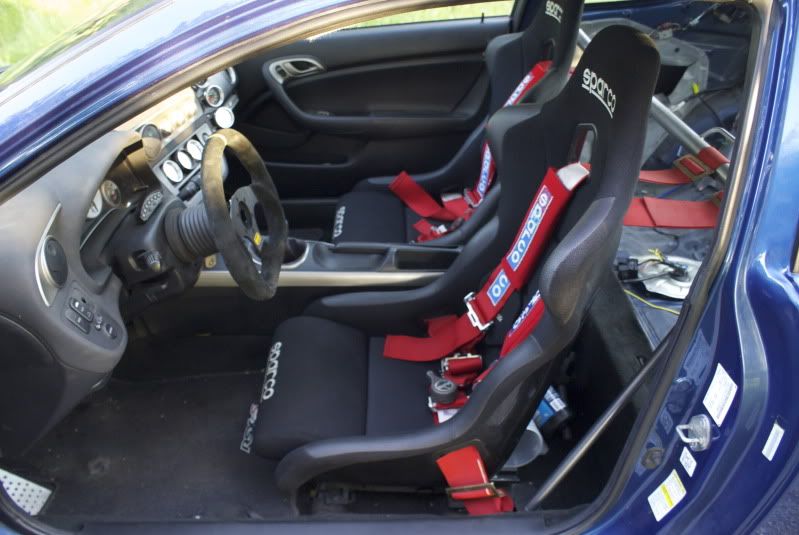

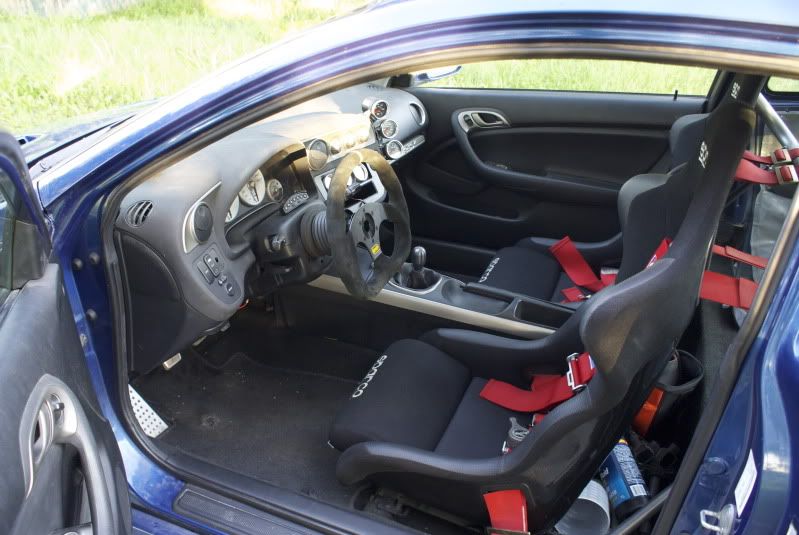

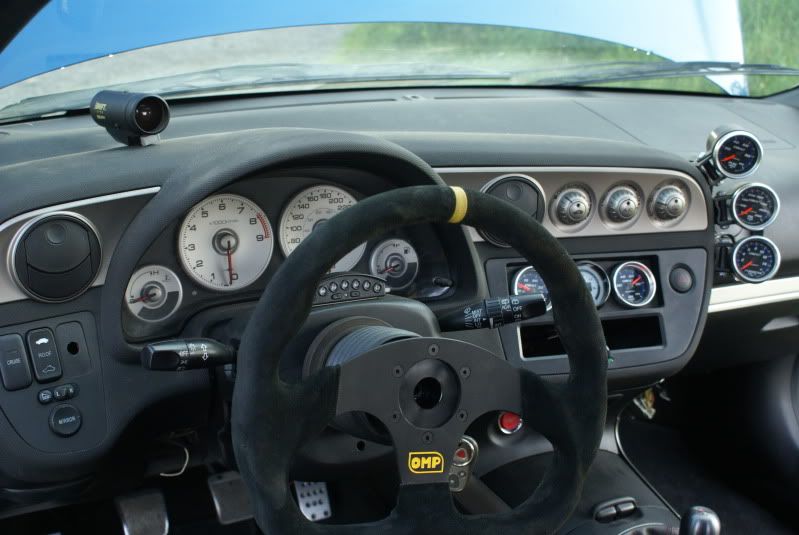

Interior
OMP Racing Quick Release Suede Steering Wheel
S2000 Engine Start Button
Sparco Racing Seats
Sparco Racing Harness
Cobalt Boost Gauge
Cobalt Fuel Pressure Gauge
Cobalt Oil Pressure Gauge
Cobalt Oil Temperature Gauge
Cobalt EGT Gauge
AEM Wide Band Gauge
Auto Meter Shift Light
JDM Typer R Shifter
Mugen Pedals
Custom Dead Pedal

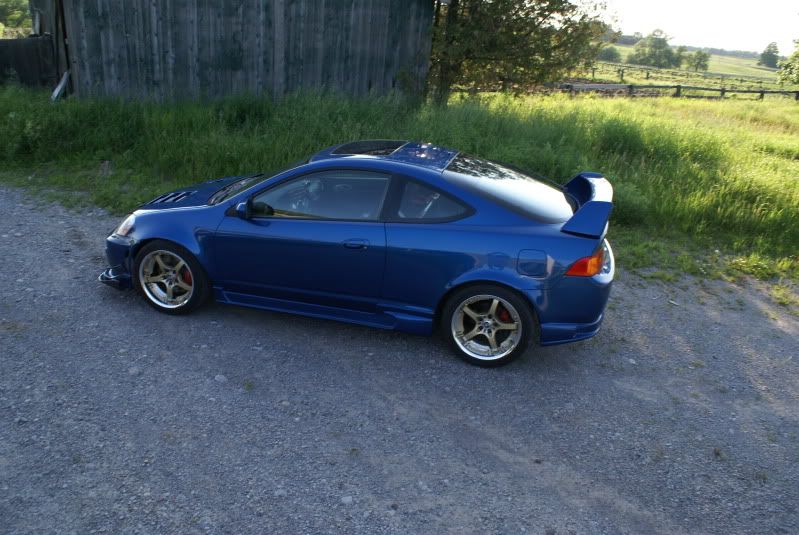

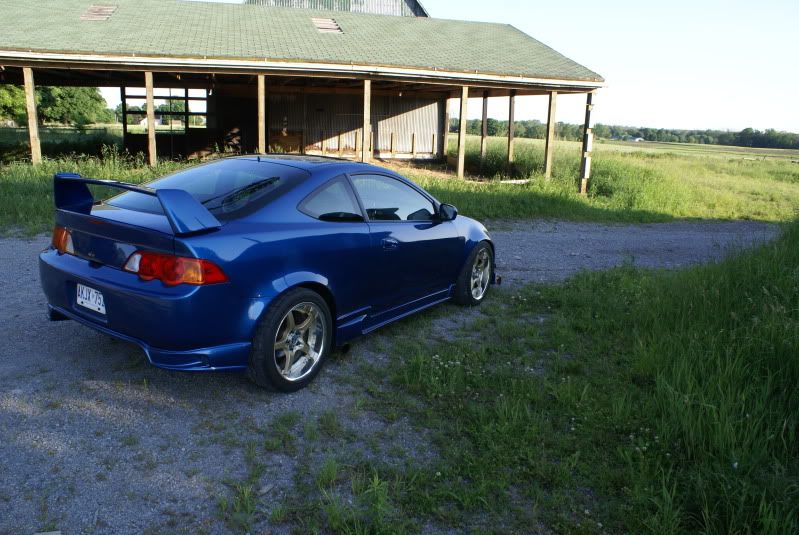

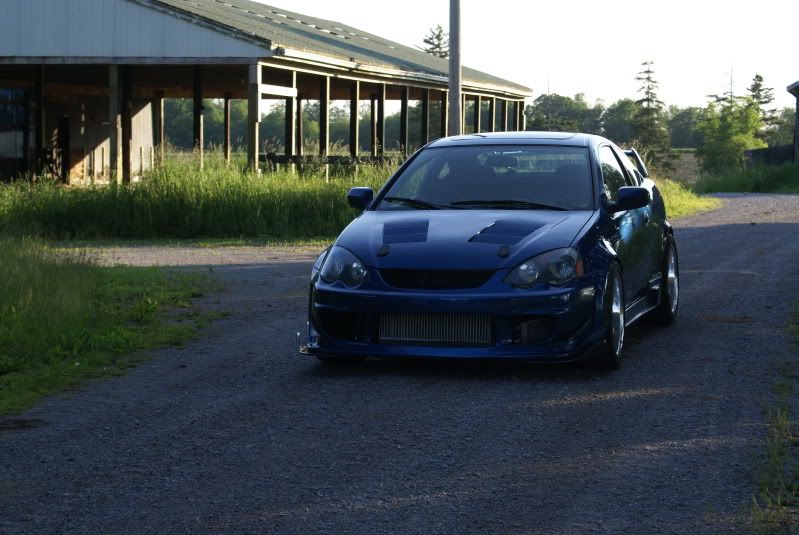

Exterior
Authentic JDM HID
Max Racing Hood
INGS Custom Wide Body
Custom Flared Fenders

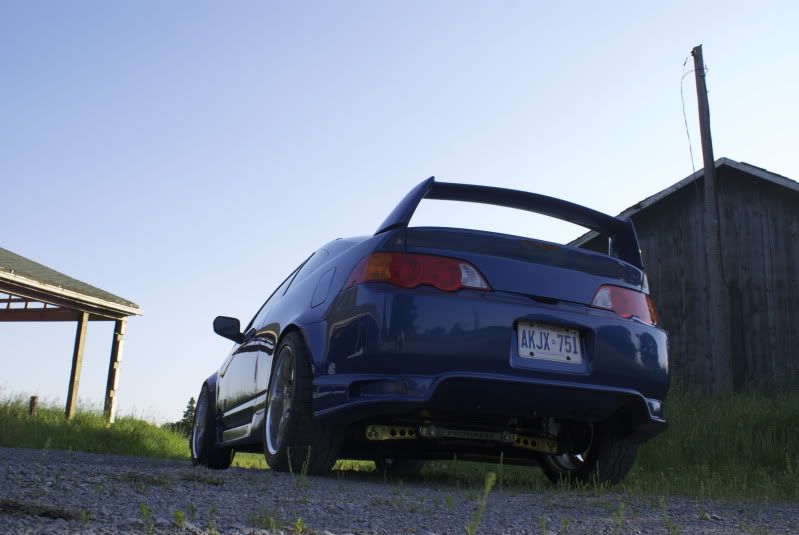

Custom Rear Spoiler
Carbon Fiber Front Bumper Diffusers
Carbon Fiber Low Bumper Cannards
Carbon Fiber Spoon Rear Diffusor
NEW SET UP
